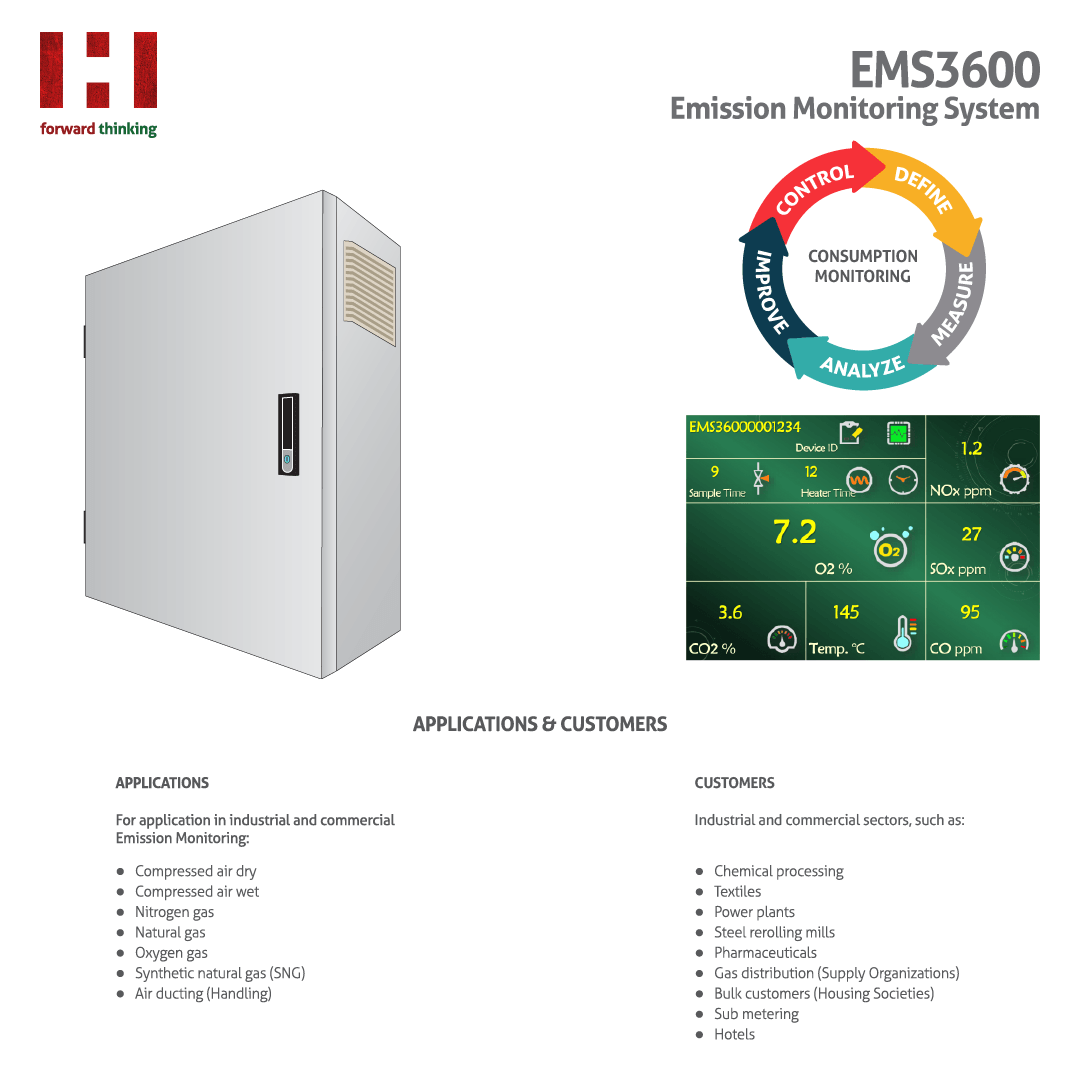

APPLICATIONS & CUSTOMERS
APPLICATIONS
For applications in industrial and commercial Emission Monitoring:
Compressed air dry
Compressed air wet
Nitrogen gas
Natural gas
Oxygen gas
Synthetic natural gas (SNG)
Air ducting (Handling)
CUSTOMERS
Industrial and commercial sectors, such as:
Chemical processing
Refineries
Power plants
Steel melting mills
Pharmaceuticals
Gas distributors (Supply Organizations)
Bulk customers (Housing Societies)
Bulk metering
Hotels

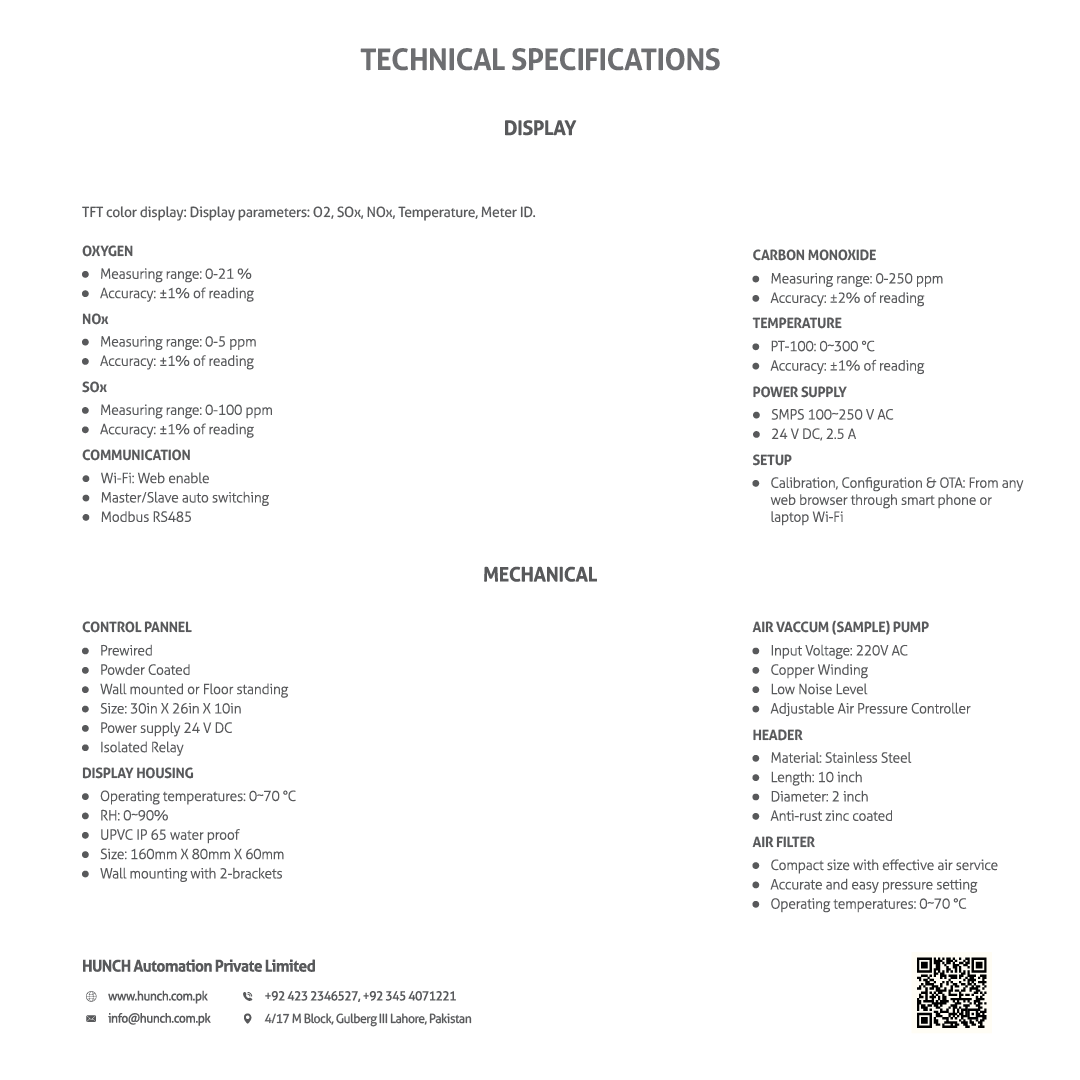

TECHNICAL SPECIFICATIONS
DISPLAY

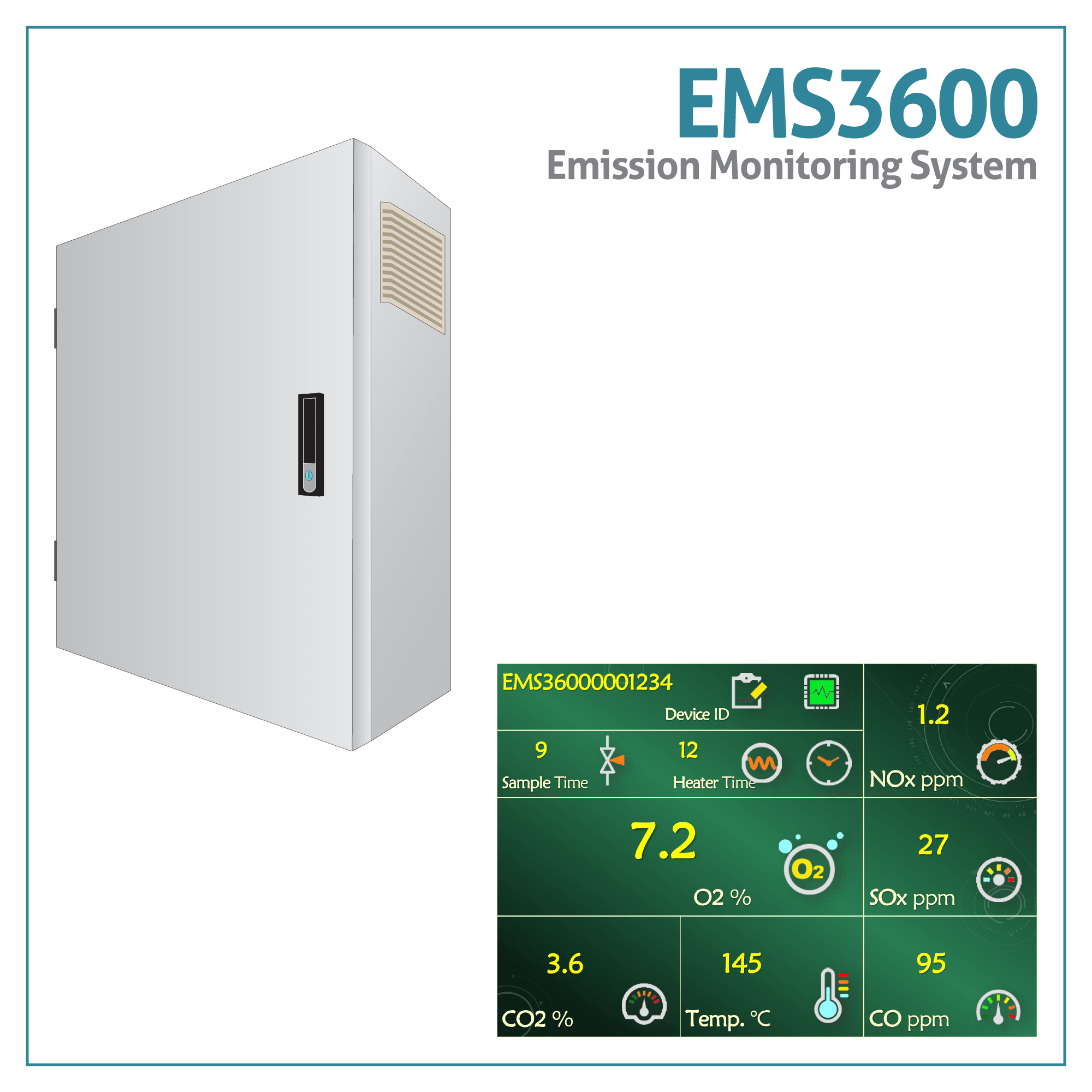

TFT color display: Display parameters: O₂, SO₂, NOx, Temperature, Meter ID.
OXYGEN
Measuring range: 0-21 %
Accuracy: ±1% of reading
NOx
Measuring range: 0-5 ppm
Accuracy: ±1% of reading
SO₂
Measuring range: 0-100 ppm
Accuracy: ±1% of reading
CARBON MONOXIDE
Measuring range: 0-250 ppm
Accuracy: ±2% of reading
TEMPERATURE
PT-100: 0-300 °C
Accuracy: ±1% of reading
POWER SUPPLY
SMPS 100-250 V AC
24 V DC, 2.5 A
COMMUNICATION
Wi-Fi: Web enable
Master/Slave auto switching
Modbus RS485
SETUP
Calibration, Configuration or OTA: From any Web browser through smart phone or laptop Wi-Fi
MECHANICAL
CONTROL PANEL
Prewired
Powder Coated
Wall mounted or Floor standing
Size: 30in X 26in X 10in
Power Supply: 24 V DC
Isolated Relay
DISPLAY UNIT
Operating temperatures: 0–70 °C
RH: 0-90%
UVPC 6/16 water proof
Size: L 160mm X 80mm X 60mm
Wall mounting with Z-brackets
AIR VACUUM SAMPLE PUMP
Input Voltage: 220V AC
Copper Winding
Low Noise Level
Inbuilt Air Pressure Controller
HEADERS
Material: Stainless Steel
Length: 0.1m to 1m
AIR DRYER
Stainless steel with effective air service
Accurate and easy pressure setting
Operating temperatures: 0–70 °C
