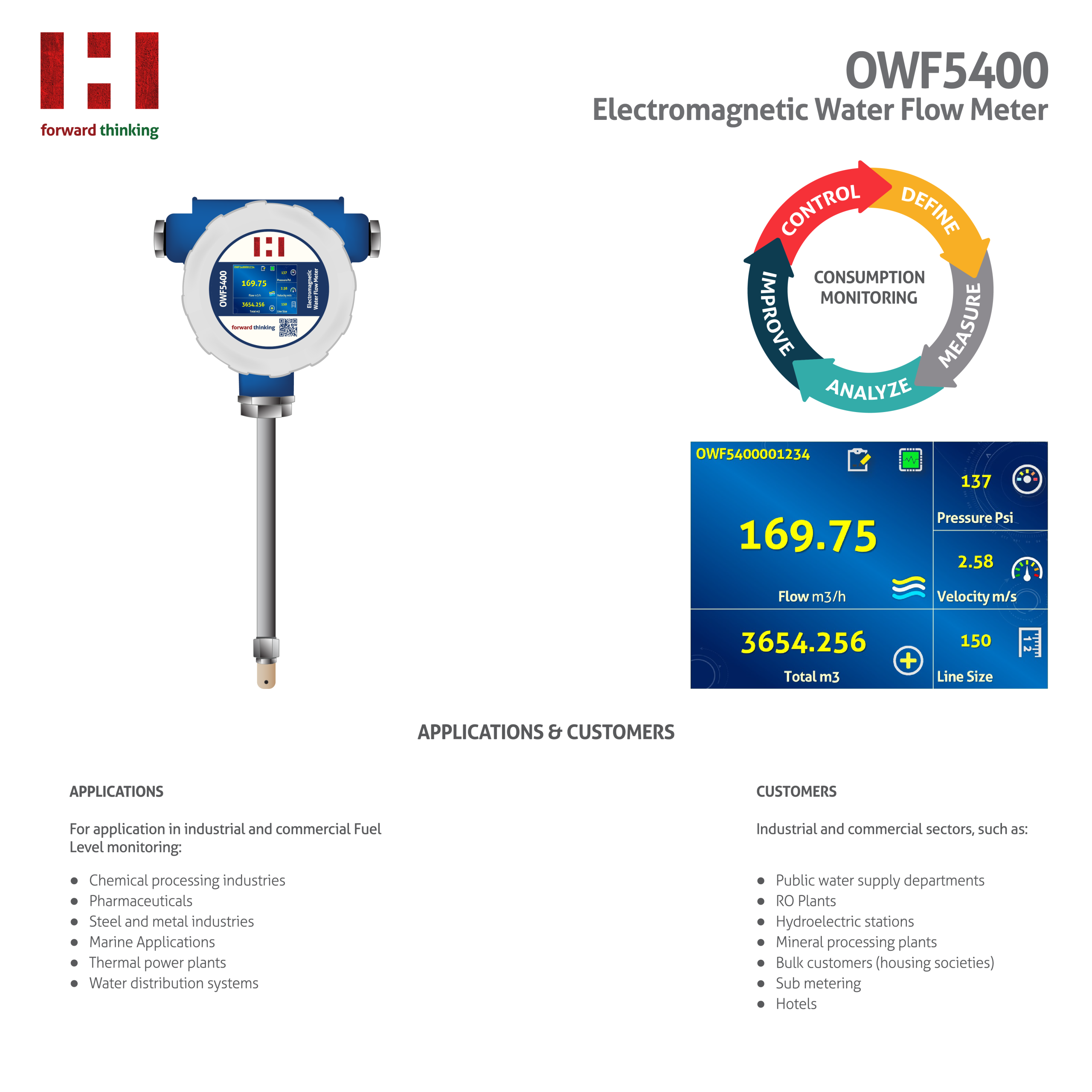

APPLICATIONS & CUSTOMERS
APPLICATIONS
For application in industrial and commercial Fuel Level monitoring:
Chemical processing industries
Pharmaceuticals
Steel and metal industries
Marine Applications
Thermal power plants
Water distribution systems
CUSTOMERS
Industrial and commercial sectors, such as:
Public water supply departments
RO plants
Hydroelectric stations
Mineral processing plants
Bulk customers (housing societies)
Sub metering
Hotels

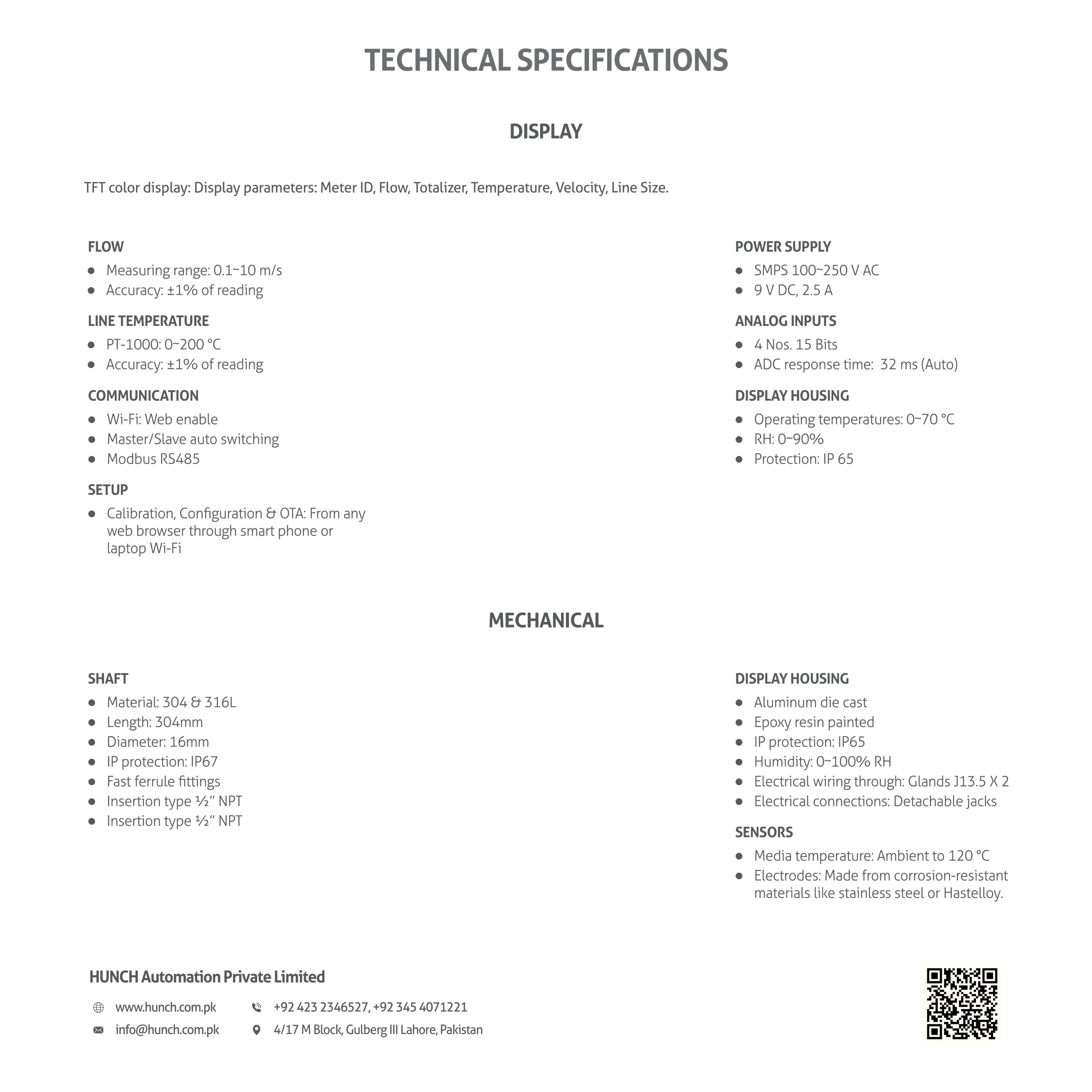

TECHNICAL SPECIFICATIONS
DISPLAY

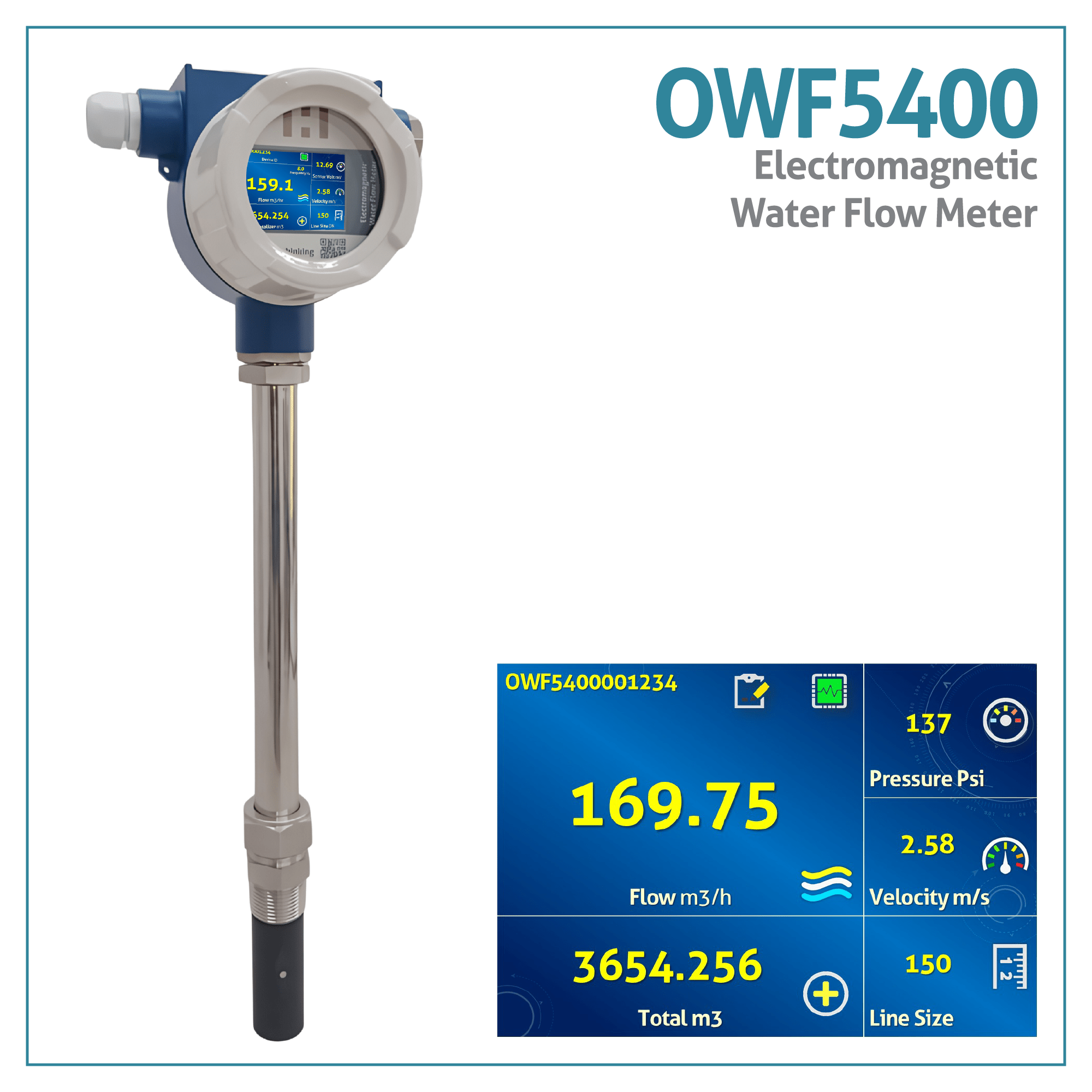

TFT color display. Display parameters: Meter ID, Flow, Totalizer, Temperature, Velocity, Line Size.
FLOW
Measuring range: 0.1–10 m/s
Accuracy: ±1% of reading
LINE TEMPERATURE
PT-1000: 0–200°C
Accuracy: ±1% of reading
COMMUNICATION
Wi-Fi/Web Enable
Master/Slave auto switching
Modbus RS485
SETUP
Calibration, Configuration & OTA: From any web browser through smartphone or laptop Wi-Fi
POWER SUPPLY
SMPS 100–250 V AC
9 V DC, 2.5 A
ANALOG INPUTS
4 Nos. 15 Bits
ADC response time: 32 ms (Auto)
DISPLAY HOUSING
Operating temperatures: 0–70°C
RH: 0–90%
Protection: IP 65
MECHANICAL
SHAFT
Material: 304 & 316L
Length: 304mm
Diameter: 16mm
IP protection: IP65
Fast ferrule fittings
Insertion type ½" NPT
Welded socket 16 mm threaded
DISPLAY HOUSING
Aluminum die cast
Epoxy resin painted
Humidity: 0–100% RH
IP protection: IP65
Electrical wiring through: Glands 13.5 X 2
Electrical connections: Detachable Jacks
SENSORS
Electrode temperature: Ambient to 120°C
Electrodes: Made from corrosion-resistant materials like stainless steel or Hastelloy
