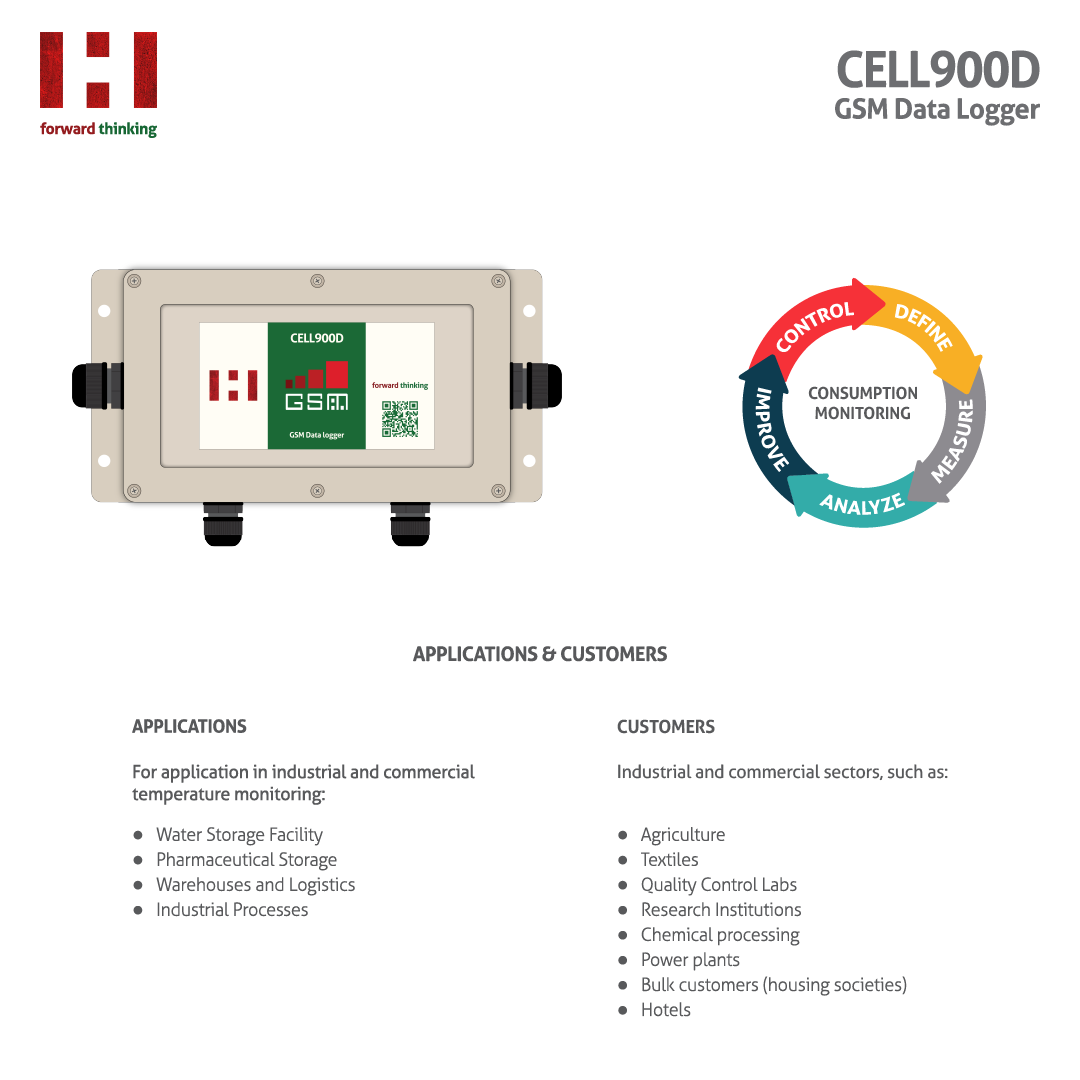

APPLICATIONS & CUSTOMERS
APPLICATIONS
For application in industrial and commercial temperature monitoring:
Water Storage Facility
Pharmaceutical Storage
Warehouses and Logistics
Industrial Processes
CUSTOMERS
Industrial and commercial sectors, such as:
Agriculture
Textiles
Quality Control Labs
Research Institutions
Chemical processing
Power plants
Bulk customers (housing societies)
Hotels
TECHNICAL SPECIFICATIONS
FEATURES
The CELL9000 telemetry system with latest CPU with forward-thinking algorithms and web server function modules makes it more user friendly.
INFORMATIVE
Smart phone/Laptop any using web browser
Remote server
EASY TO USE
Operation can be done within minutes. Connect the field instrument with pre made wiring harness. Keep it online and configure it by using local App and get the data on online remote server.
SETUP
Calibration, Configuration & OTA From any web browser through smart phone or laptop Wi-Fi
ENVIRONMENTALLY TOUGH
UPVC housing
Wiring harness IP65 with water proof glands
COMMUNICATIONS: 3 types of communications available
Modbus RS485 (Master)
Wi-Fi Hotspot with Web Server
GSM/GPRS/2G/3G
HOUSING
Housing: UPVC IP 65 water proof
Mounting: Wall mounting
Size: 140mm X 38mm X 35mm
SPECIFICATIONS
CONNECTIONS
PCB: Removable screw terminal blocks
Terminal block Wire size: 0.5~0.7 mm
Field connections: Wiring harness 3 meters
PASSWORD
Minimum 2-Level of passwords restriction
SSID
User Account
Admin Account
COMMUNICATION
Remote: Could server using MQTT protocol
EEPROM
Data retention 20,000 records (1.08 B/Record)
BACKUP POWER
1 × 12V battery
Light Sleep Mode
INPUT
Temperature 1 Nos. (Non-Isolated)
Pulse Counter
TRANSMISSION
User programmable
Interval: 12~24 Hour
Method: Using Mosquitto broker via MQTT
PROTOCOL
MQTT
ENVIRONMENTAL
Operating Temperature: –10~65 °C
Storage: –40~85 °C
Relative humidity 10~90%
CPU
Dual core up to 240 MHz
Flash RAM
Flash RAM: 4 MB
SRAM: 520 KB SRAM
DATABASE
Mongo DB and SQLite
POWER SUPPLY
9-24 V DC, 5 W
WARRANTY
1 year after delivery
