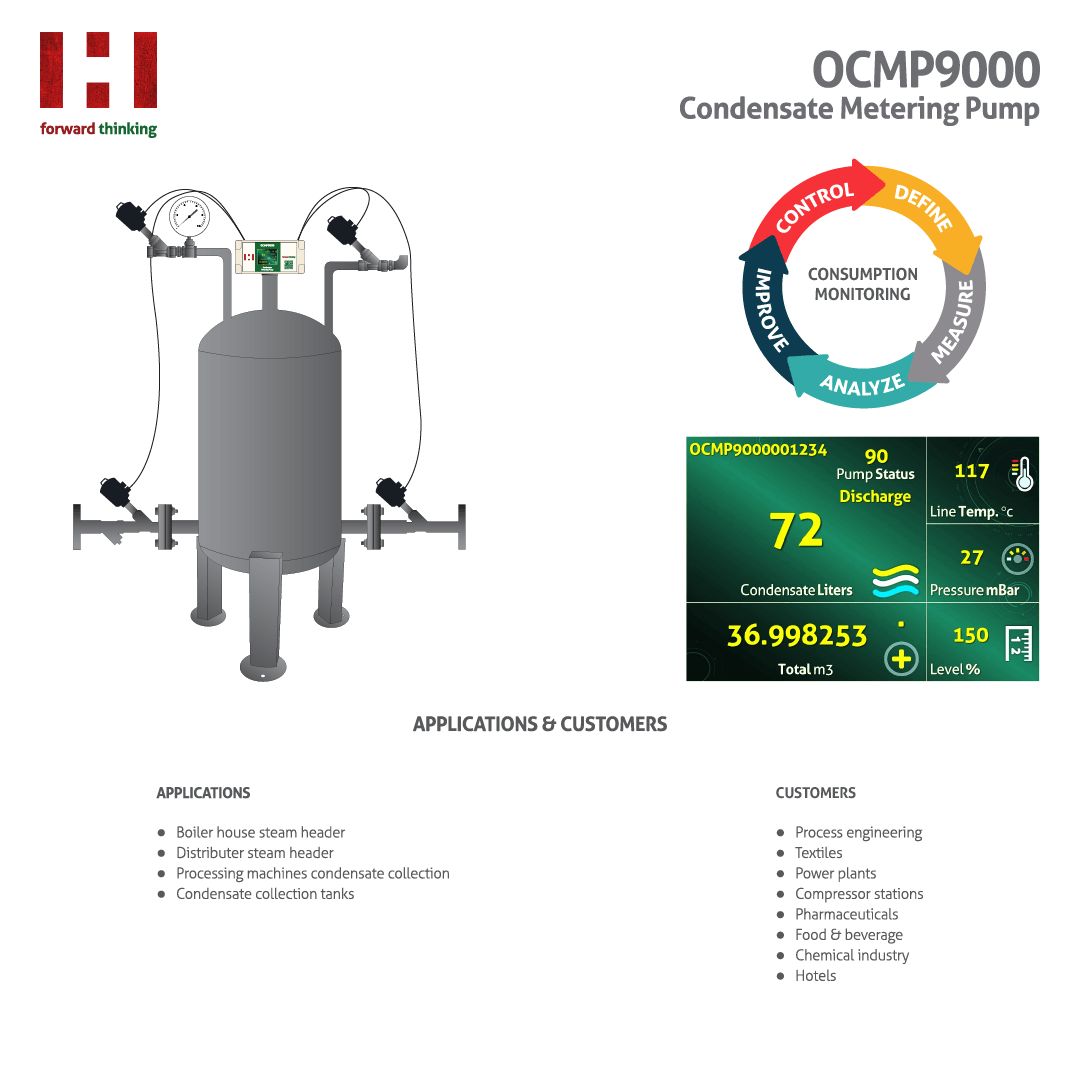

APPLICATIONS & CUSTOMERS
TDS HOUSING
Boiler house steam header
Distributer steam header
Processing machines condensate collection
Condensate collection tanks
CUSTOMERS
Process engineering
Textiles
Power plants
Compressor stations
Pharmaceuticals
Food & beverage
Chemical industry
Hotels

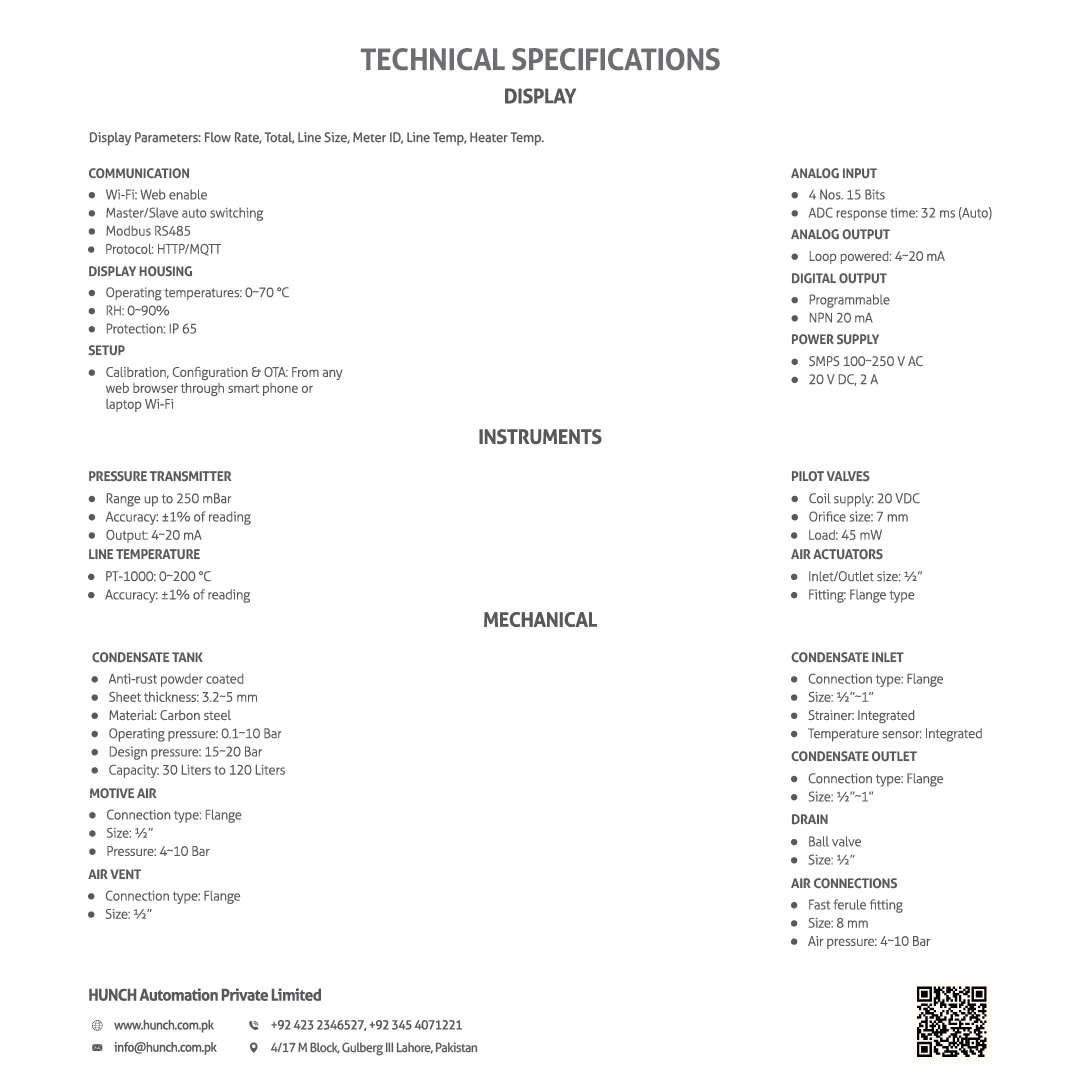

TECHNICAL SPECIFICATIONS
DISPLAY
Display Parameters: Flow Rate, Total, Line Size, Meter ID, Line Temp, Heater Temp
COMMUNICATION
Wi-Fi/Web enable
Master/Slave auto switching
Modbus RS485
Protocol: HTTP/MQTT
DISPLAY HOUSING
Operating temperatures: 0–70°C
RH: 0–90%
Protection: IP 65
SETUP
Calibration, Configuration & OTA: From any web browser through smartphone or laptop Wi-Fi
ANALOG INPUT
4 Nos. 15 Bits
ADC response time: 32 ms (Auto)
ANALOG OUTPUT
Loop powered: 4–20 mA
DIGITAL OUTPUT
Programmable
NPN 20 mA
POWER SUPPLY
SMPS 100–250 V AC
20 V DC, 2 A
INSTRUMENTS
PRESSURE TRANSMITTER
Range up to 250 mbar
Accuracy: ±1% of reading
Output: 4–20 mA
LINE TEMPERATURE
PT-1000: 0–200°C
Accuracy: ±1% of reading
PILOT VALVES
Coil supply: 20 VDC
Orifice size: 7 mm
Load: 4.5 W
ACTUATORS
Inlet/Outlet size: ½”
Fitting: Flange type
MECHANICAL
CONDENSATE TANK
Anti-rust powder coated
Sheet thickness: 3.2–5 mm
Material: Carbon Steel
Operating pressure: 0.1–10 Bar
Design pressure: 12 Bar
Capacity: 30 Litres to 120 Litres
CONDENSATE INLET
Connection type: Flange
Size: ½”×1”
Strainer: Integrated
Temperature sensor: Integrated
CONDENSATE OUTLET
Connection type: Flange
Size: ½”×1”
AIR CONNECTIONS
Fast ferrule fitting
Size: 8 mm
Air pressure: 4–10 Bar
DRAIN
Ball valve
Size: ½”
MOTIVE AIR
Connection type: Flange
Size: ½”
Pressure: 4–10 Bar
AIR VENT
Connection type: Flange
Size: ½”
