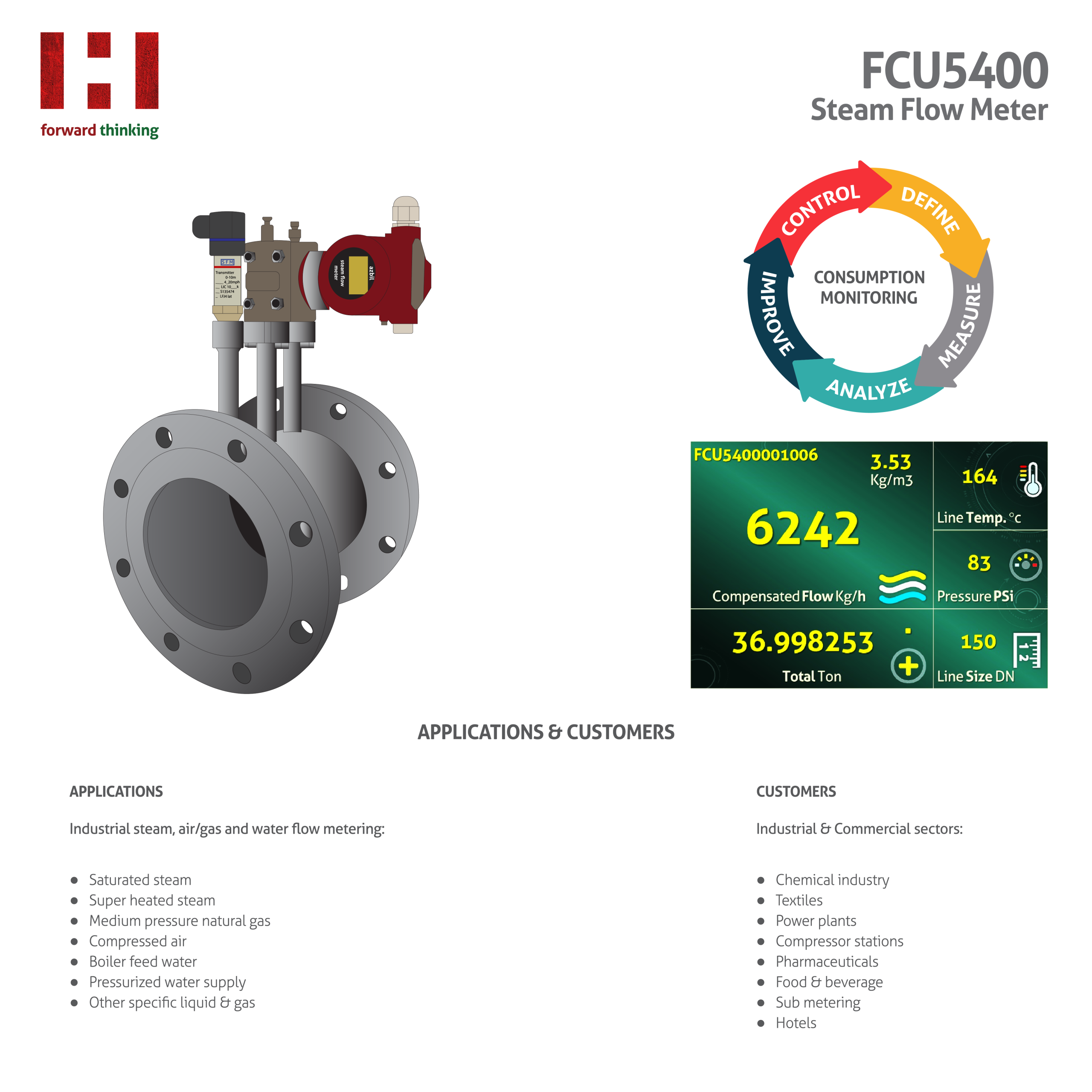

APPLICATIONS & CUSTOMERS
Applications:
Industrial steam, air/gas and water flow metering:
Saturated steam
Super heated steam
Medium pressure natural gas
Compressed air
Boiler feed water
Pressurized water supply
Other specific liquid & gas
Customers:
Industrial & Commercial sectors:
Chemical industry
Textiles
Power plants
Compressor stations
Pharmaceuticals
Food & beverage
Sub metering
Hotels

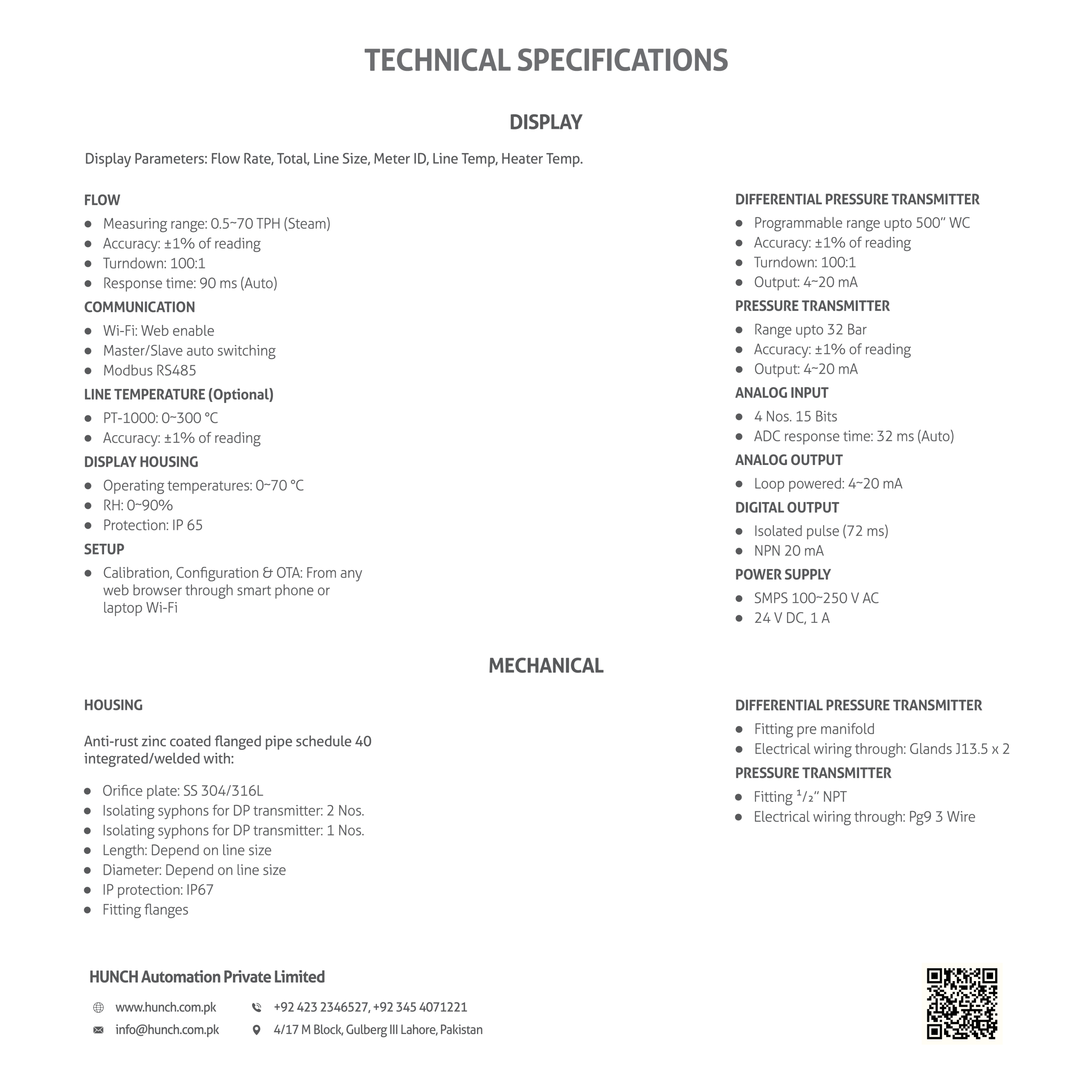

TECHNICAL SPECIFICATIONS
DISPLAY
Display Parameters:
Flow Rate, Total, Line Size, Meter ID, Line Temp, Heater Temp.
Flow:
Measuring range: 0.5–70 TPH (Steam)
Accuracy: ±1% of reading
Turndown: 10:01
Response time: 90 ms (Auto)
Communication:
Wi-Fi/Web enable
Master/Slave auto switching
Modbus RS485
Line Temperature (Optional):
Pt-1000: 0–300 °C
Accuracy: ±1% of reading
Display Housing:
Operating temperature: 0–70 °C
RH: 0–90%
Protection: IP 65
Setup:
Calibration, configuration & OTA: From any web browser through smartphone or laptop Wi-Fi
DIFFERENTIAL PRESSURE TRANSMITTER
Programmable range up to 500" WC
Accuracy: ±1% of reading
Turndown: 10:01
Output: 4–20 mA
PRESSURE TRANSMITTER
Range up to 32 Bar
Accuracy: ±1% of reading
Output: 4–20 mA
ANALOG INPUT
4 Nos. 15 Bits
ADC response time: 32 ms (Auto)
ANALOG OUTPUT
Loop powered: 4–20 mA
DIGITAL OUTPUT
Isolated pulse (72 ms)
NPN 20 mA
POWER SUPPLY
SMPS 100–250 V AC
24 V DC, 1 A
MECHANICAL
Housing:
Anti-rust zinc coated flanged pipe schedule 40 integrated/welded with:
Orifice plate: SS 304/316L
Isolating spheres for DP transmitter: 2 Nos.
Isolating spheres for DP transmitter: 1 Nos.
Length: Depend on line size
Diameter: Depend on line size
IP protection: IP67
Fitting flanges
Differential Pressure Transmitter:
Fitting: remote manifold
Electrical wiring through: Glands 13.5 x 2
Pressure Transmitter:
Fitting: ½” NPT
Electrical wiring through: Pg9 3 Wire
