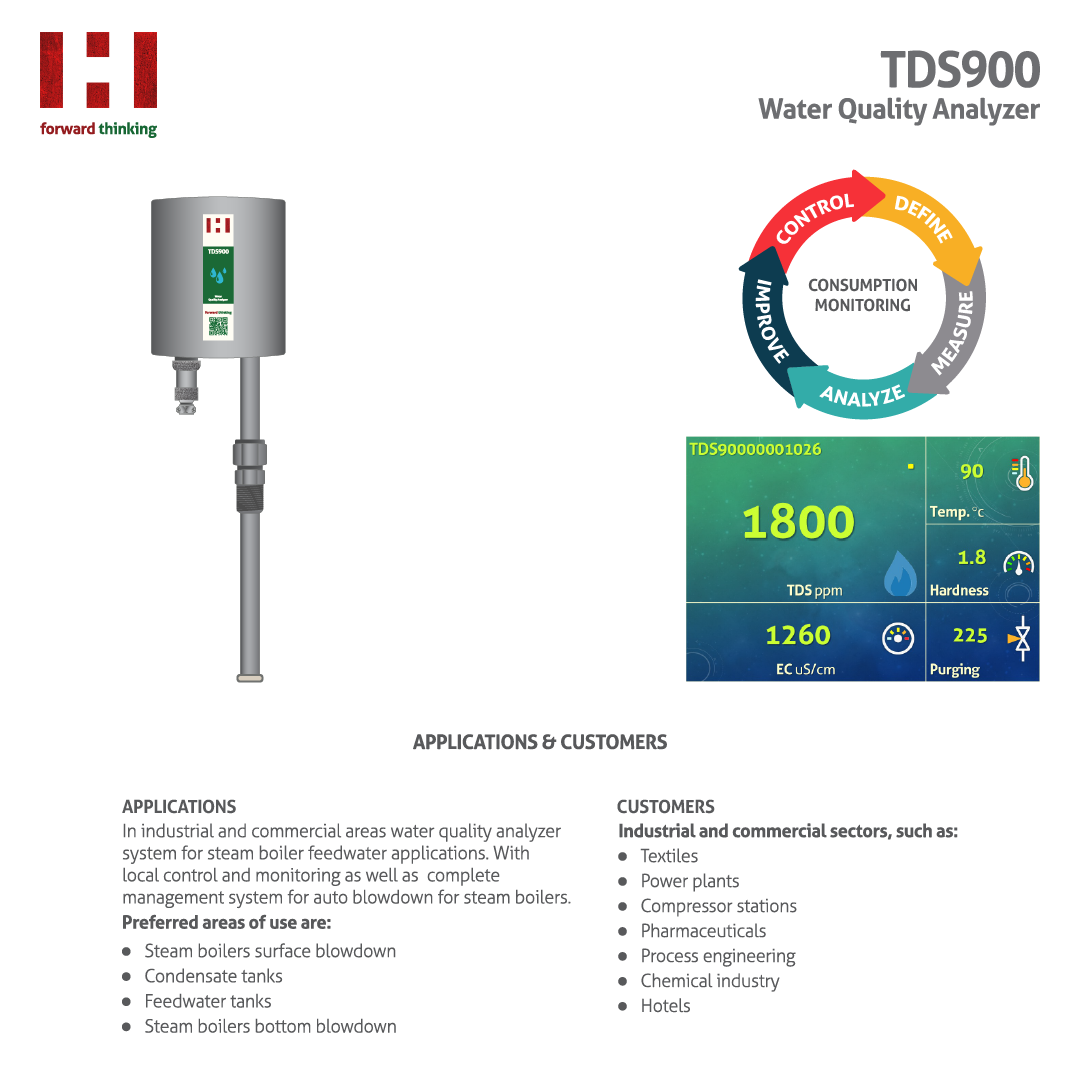

APPLICATIONS & CUSTOMERS
APPLICATIONS
In industrial and commercial areas water quality analyzer system for steam boiler feedwater applications. With intelligent local monitoring as well as complete management system for auto blowdown for steam boilers.
Preferred areas of use are:
Steam boiler surface blowdown
Condensate tanks
Feedwater tanks
Steam boilers bottom blowdown
CUSTOMERS
Industrial and commercial sectors, such as:
Process engineering
Textiles
Power plants
Compressor stations
Pharmaceutical industry
Chemical industry
Hotels

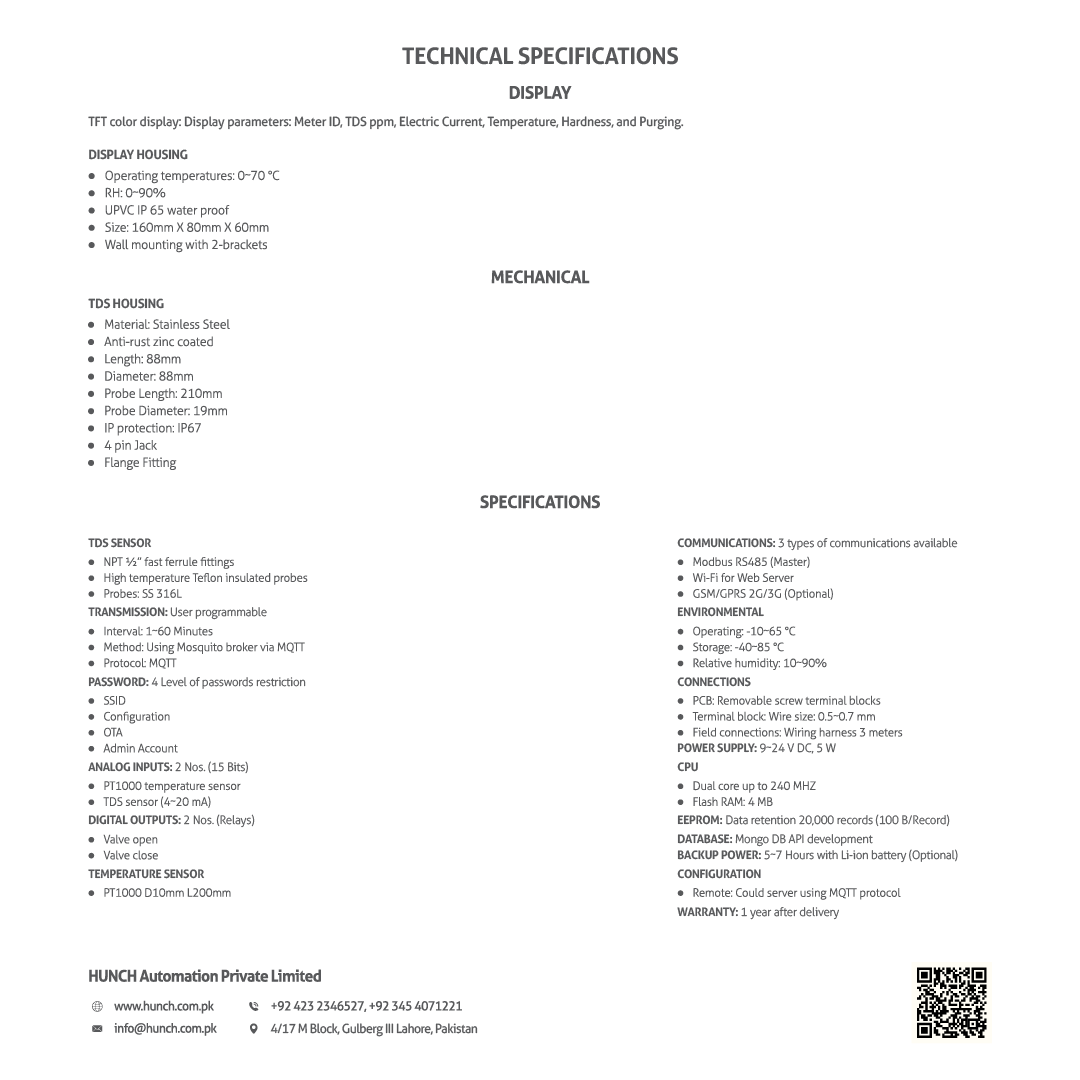

TECHNICAL SPECIFICATIONS

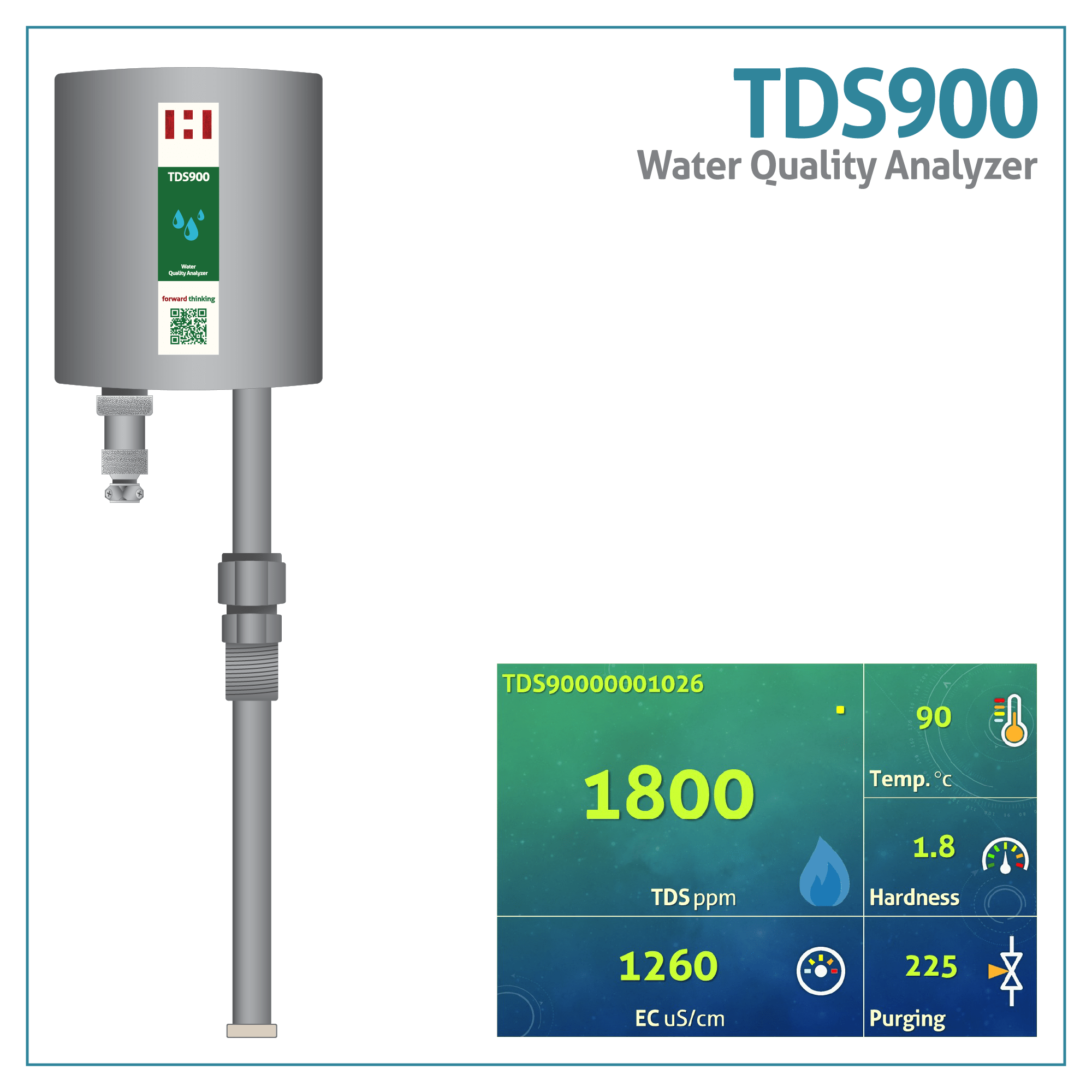

DISPLAY
TFT color display
Display parameters: Meter ID, TDS ppm, Electric Current, Temperature, Hardness, and Purging.
DISPLAY HOUSING
Operating temperatures: 0–70°C
RH: 0–95%
UPVC IP-65 water proof
Size: 160mm x 80mm x 60mm
Wall mounting with Z-brackets
MECHANICAL
TDS HOUSING
Material: Stainless Steel
Anti-rust Zinc coated
Length: 88mm
Diameter: 88mm
Probe Length: 210mm
Probe Diameter: 19mm
IP protection: IP67
4-pin Jack
Flange Fitting
SPECIFICATIONS
TDS SENSOR
NPT ½" SS flat pressure fittings
High temperature Teflon insulated probes
Probes: SS 316L
TRANSMISSION
User programmable
Interval: 1–60 Minutes
Method: Using Mosquito broker via MQTT
Protocol: MQTT
PASSWORDS: 4 Level of passwords restriction
SSID
Configuration
OTA
Admin Account
ANALOG INPUTS: 2 Nos. (15 Bits)
PT1000 temperature sensor
TDS sensor (4–20 mA)
DIGITAL OUTPUTS: 2 Nos. (Relays)
Valve open
Valve close
COMMUNICATION
Local: Configure using MQTT protocol
EEPROM
Data retention: 20,000 records (100 B/Record)
BACKUP POWER
5–7 Hours with Li-ion battery (Optional)
COMMUNICATIONS: 3 types of communications available
Modbus RS485 (Master)
Wi-Fi for Web Server
GSM/GPRS 2G/3G (Optional)
ENVIRONMENTAL
Operating: -10°C to 55°C
Storage: -40°C to 85°C
Relative humidity: 10–90%
CONNECTIONS
PCB: Removable screw terminal blocks
Terminal block wire size: 0.5–0.7 mm
Field connections: Wiring harness 3 meters
CPU
Dual core up to 240 MHz
Flash RAM: 4 MB
EEPROM
DATABASE
Mongo DB App development
TEMPERATURE SENSOR
PT1000 or D1000mm L200mm
POWER SUPPLY
9–24 V DC, 1 A
WARRANTY
1 year after delivery
