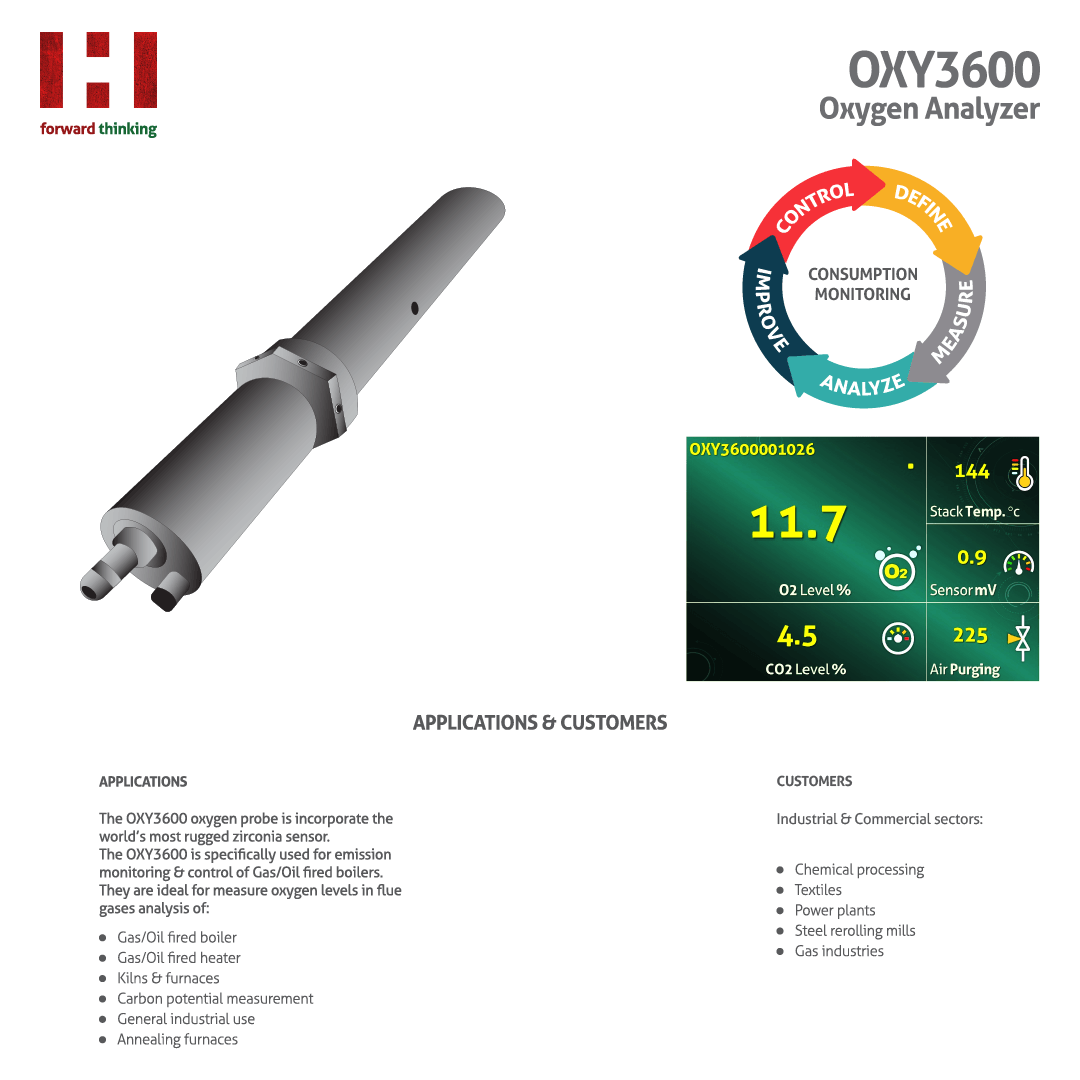

APPLICATIONS & CUSTOMERS
APPLICATIONS

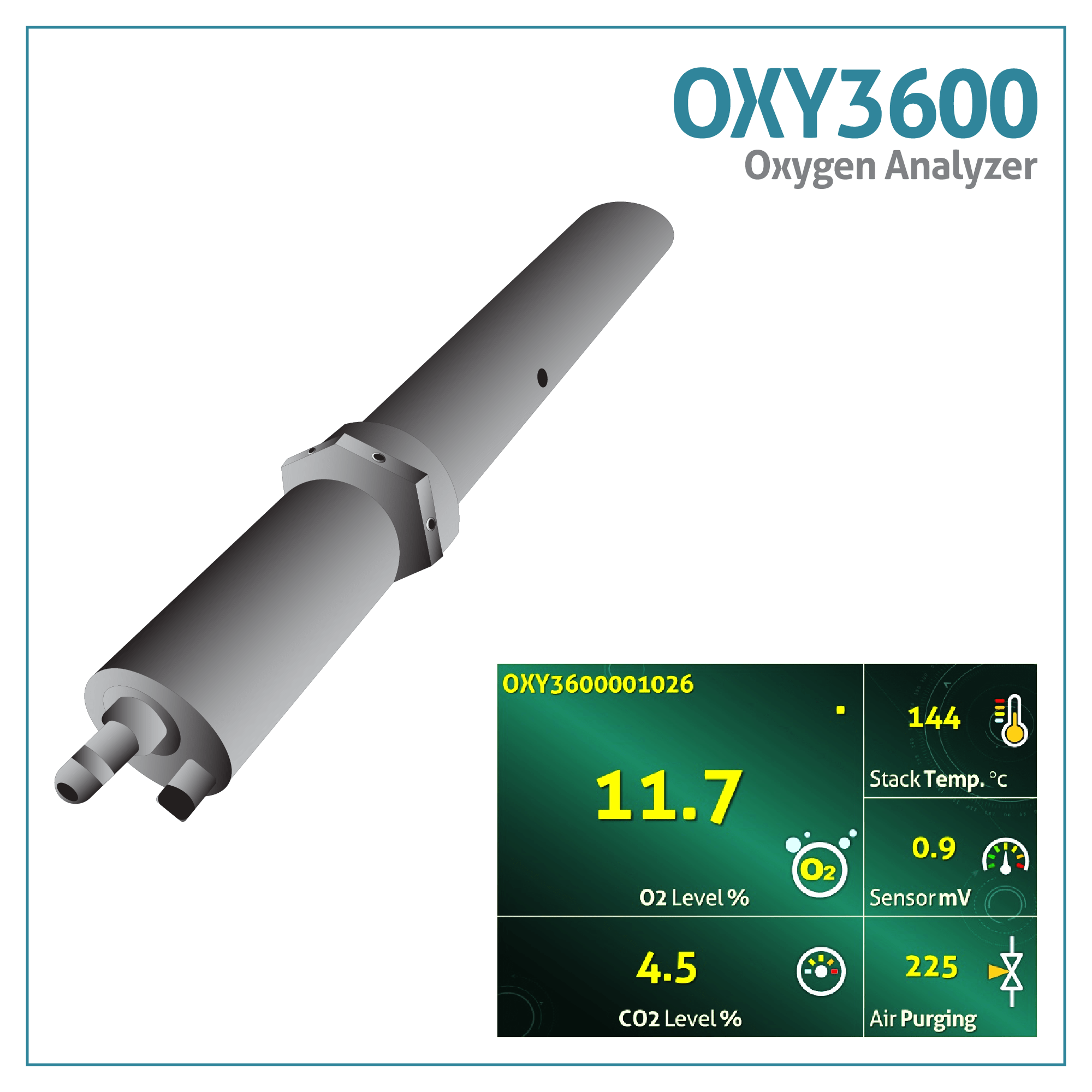

The OXY3600 oxygen probe incorporates the world’s most rugged zirconia sensor.
It is specifically used for emission monitoring & control of Gas/Oil fired boilers.
They are ideal for measuring oxygen levels in flue gases in:
Gas/Oil fired boiler
Gas/Oil fired heater
Kilns & furnaces
Carbon potential measurement
General industrial use
Annealing furnaces
CUSTOMERS
Industrial & Commercial sectors:
Chemical processing
Textiles
Power plants
Steel rerolling mills
Gas industries

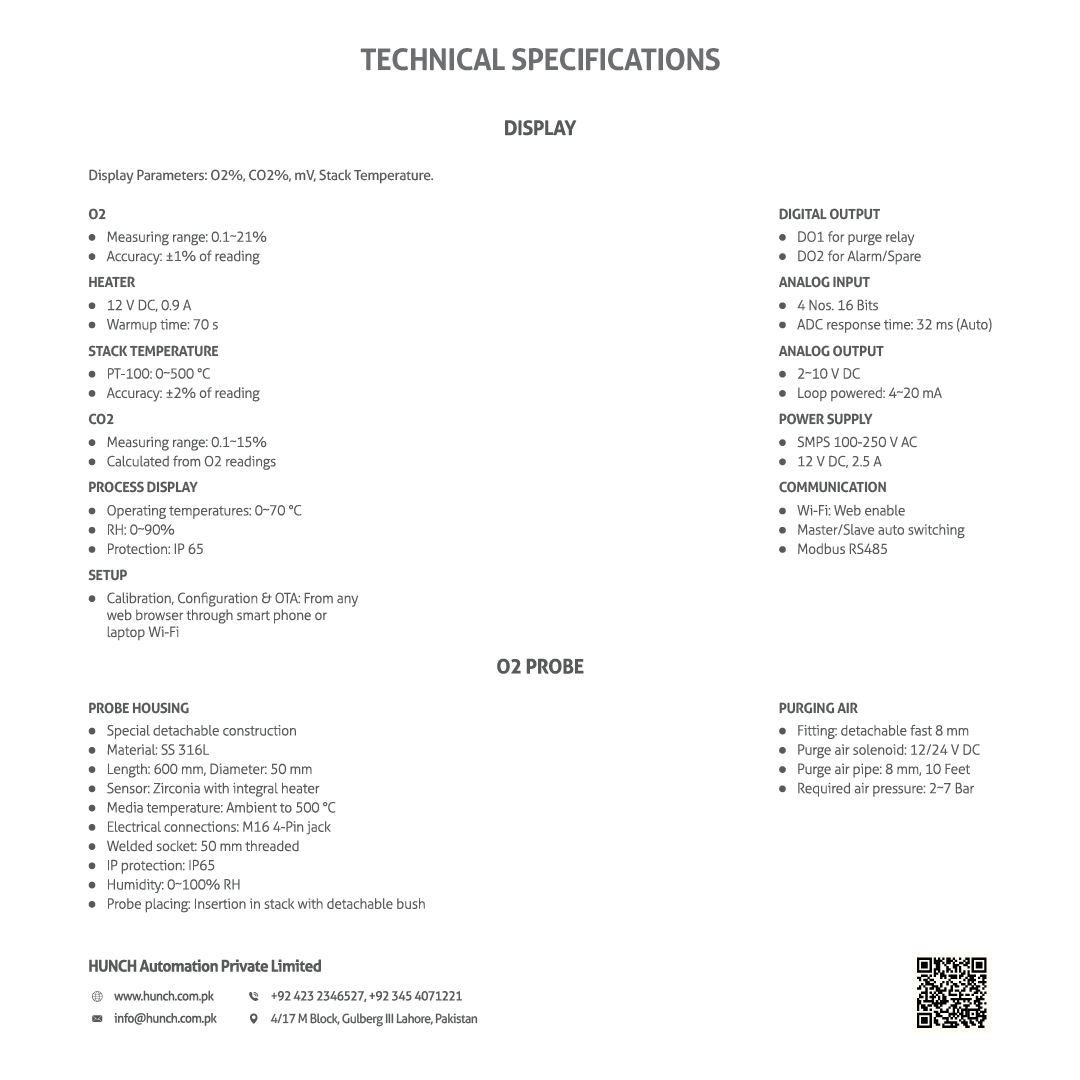

TECHNICAL SPECIFICATIONS
DISPLAY
Display Parameters: O2%, CO2%, mV, Stack Temperature
O2
Measuring range: 0.1–21%
Accuracy: ±1% of reading
HEATER
12 V DC, 0.9 A
Warmup time: 70 s
STACK TEMPERATURE
PT-100: 0~500 °C
Accuracy: ±2% of reading
CO2
Measuring range: 0.1–15%
Calculated from O2 readings
PROCESS DISPLAY
Operating temperatures: 0~70 °C
RH: 0~90%
Protection: IP 65
SETUP
Calibration, Configuration & OTA: From any web browser through smartphone or laptop Wi-Fi
DIGITAL OUTPUT
DO1 for purge relay
DO2 for Alarm/Spare
ANALOG INPUT
4 Nos. 16 Bits
ADC response time: 32 ms (Auto)
ANALOG OUTPUT
2~10 V DC
Loop powered: 4~20 mA
POWER SUPPLY
SMPS 100-250 V AC
12 V DC, 2.5 A
COMMUNICATION
Wi-Fi: Web enabled
Master/Slave auto switching
Modbus RS485
O2 PROBE
PROBE HOUSING
Special detachable construction
Material: SS 316L
Length: 600 mm, Diameter: 50 mm
Sensor: Zirconia with integral heater
Media temperature: Ambient to 500 °C
Electrical connections: M16 4-Pin Jack
Welded socket: 50 mm threaded
IP protection: IP65
Humidity: 0~100% RH
Probe placing: Insertion in stack with detachable bush
PURGING AIR
Fitting: detachable fast 8 mm
Purge air solenoid: 12/24 V DC
Purge air pipe: 8 mm, 10 Feet
Required air pressure: 2~7 Bar
