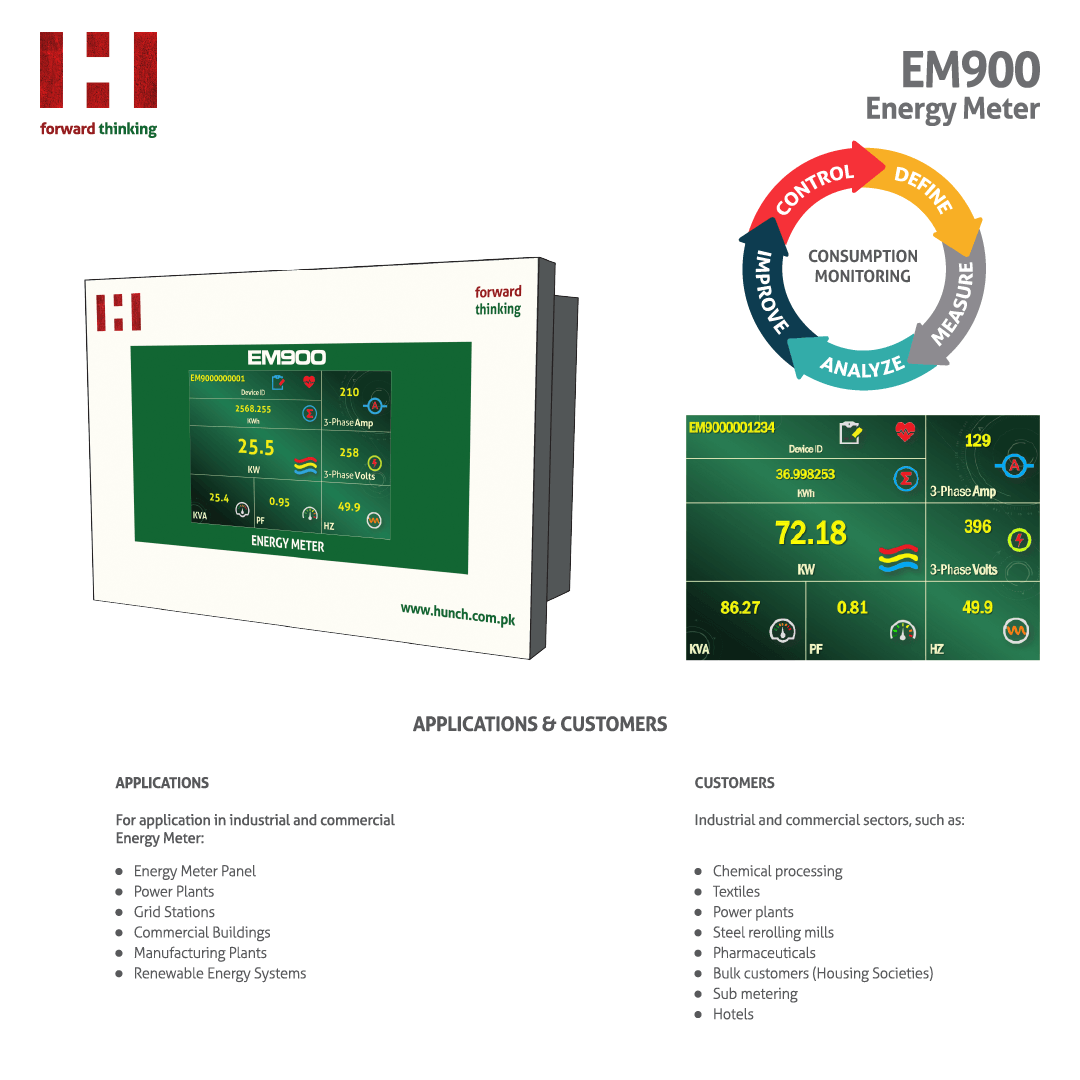

APPLICATIONS & CUSTOMERS
APPLICATIONS
For application in industrial and commercial sectors:
Energy Meter Plant
Power Panels
Grid Stations
Commercial Buildings
Industrial Setups
Renewable Energy Systems
CUSTOMERS
Industrial and commercial sectors, such as:
Chemical processing
Food industry
Paper plants
Steel rolling mills
Water plants
Textile sector
Flour mills
Sugar mills
Manufacturing industries (including Societies)
Oil & Gas industries
TECHNICAL SPECIFICATIONS
FEATURES
The EMU-1000 monitoring system with latest ICT/IoT offers forward-thinking algorithms and value-added smart functions.
Unique local & HTTP (cloud) based access: standalone display with touch screen + Web parameter form
Local Wi-Fi with Access Point
Smart online App display using web browser
Remote monitoring
Maximum 2-Level of password restriction
Admin & Account
Automated dashboards
Installation can be done within minutes. Connect device in power panel or energy meter through RS485, then connect Wi-Fi through smart App and get live data on online secure web.
SPECIFICATIONS
EMBEDDED INDUSTRY LEVEL
ARM Cortex core
32-bit MCU
96 MHz speed
Flash 1MB
RAM 256 KB
RTC (Real Time Clock)
Memory Card Supported
Power Supply: 85~264V AC
Power Frequency: 50/60Hz
Measuring Range: 0~9999.99
Temperature: –10°C ~ 55°C waterproof
Shell material: ABS, flame retardant & UV resistant
Size: 138mm x 138mm x 100mm
Mounting: Wall-mounted
Interfaces: RS-485, Wi-Fi, USB
Storage: MicroSD, supports up to 32GB
Max users: 2
Account: Admin & 2 password restrictions
Dashboard: Real-time web-based
Protocols:
Modbus
RS485 data loader using MQTT protocol
HTTP (cloud server)
Communication: Local wireless and secured via MQTT to cloud server
Access: Web browser
Device can retrieve 20,000 records (1.08 Billion)
COMMUNICATIONS (3 types of communication available)
Wi-Fi with Web based Access
Wi-Fi to Remote Server (Optional)
RS-485 to Server
DIMENSIONS
138mm x 138mm x 100mm
ENVIRONMENT
Operating temperature: –10°C to 55°C
Storage temperature: –20°C to 70°C
Humidity: < 90%
METERING COMPATIBILITY
Compatible with 3P 4W multifunction meters like:
Circutor
Secure
Schneider
Accuenergy
Janitza
Neptune
Other RS-485 Modbus Energy Meters
APPLICATIONS
Power Management
Sub-metering
HT Panel monitoring
Billing, Load & Power factor monitoring
Real-time dashboards
MOUNTING
Wall mount
DIN Rail (with L-clamp bracket)
FREQUENCY
50/60 Hz
COMMUNICATION BAND
2.4 GHz ISM band
POWER
85V ~ 264V
5V micro USB (with built-in battery) (Optional)
Max power: 15 W
BACKUP
12V battery
48 hours after delivery
