APPLICATIONS & CUSTOMERS
APPLICATIONS
In industrial, commercial and remote areas telemetry system for generators or sets with energy and fuel monitoring as well as with all field sensors. Complete management system for the generator set health monitoring and fuel usage according to power generated.
Preferred areas of use are:
Sub-monitoring of power
Textiles and process industry
Diesel generator sets
Gas generator sets
R&S
Rental power
Diesel fuel management
Remote area power stations
CUSTOMERS
Industrial and commercial sectors, such as:
Chemical processing
Textiles
Power plants
Steel re-rolling mills
Pharmaceuticals
Bulk customers (housing societies)
Hotels

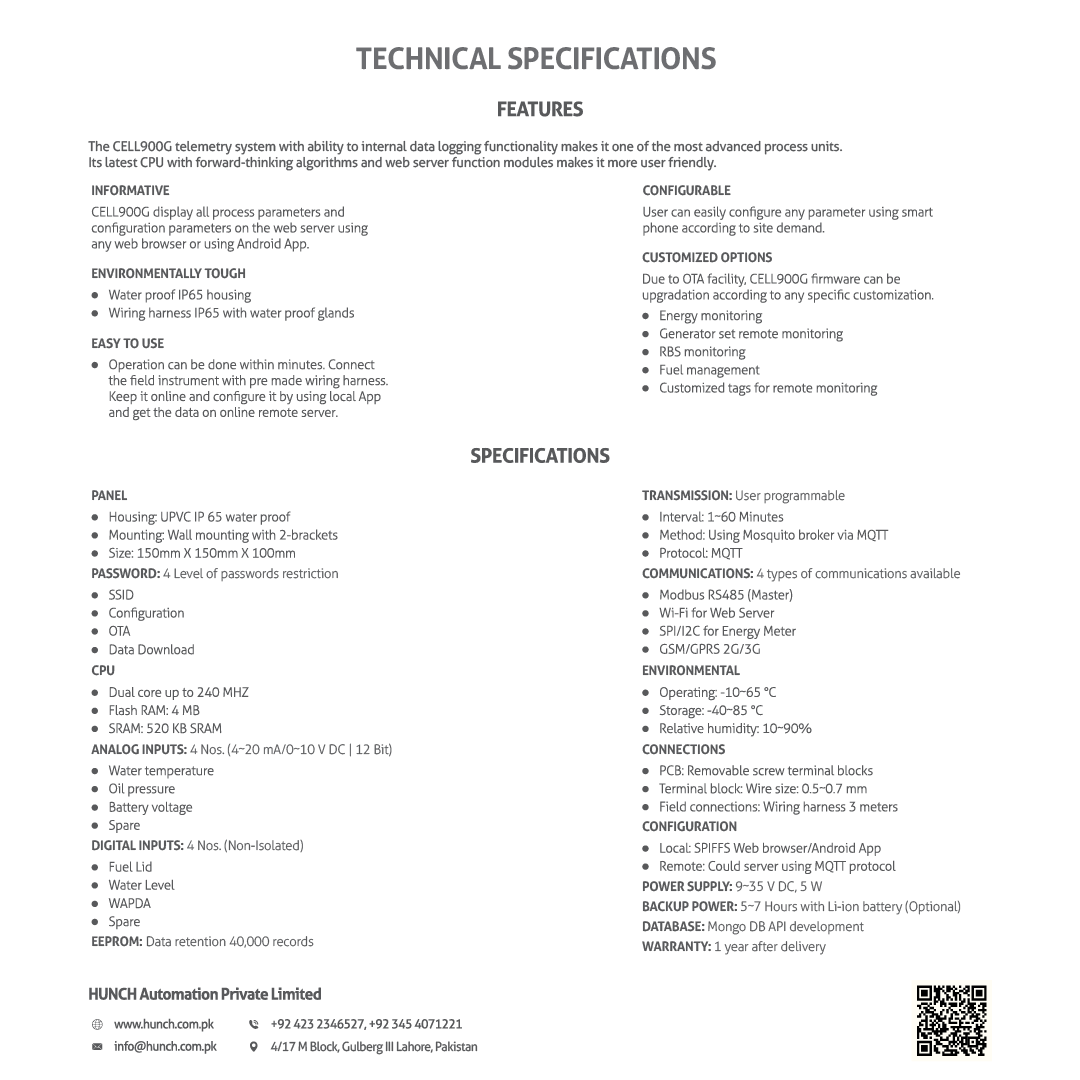

TECHNICAL SPECIFICATIONS
FEATURES
INFORMATIVE
CELL900G display all process parameters and configuration parameters on the web server using any web browser or using Android App.
ENVIRONMENTALLY TOUGH
UPVC housing
Wiring harness IP65 with water proof glands
EASY TO USE
Operation can be done within minutes. Connect the field instrument with pre-made wiring harness. Keep unit online and configure it by using local App and get the data on online remote server.
CONFIGURABLE
User can easily configure any parameter using smart phone according to the demand.
CUSTOMIZED OPTIONS
Due to OTA facility, CELL900G firmware can be upgraded to any setup for specific customization.
Energy monitoring
Generator remote monitoring
R&S monitoring
Fuel management
Customized tags for remote monitoring
SPECIFICATIONS
PANEL
Housing: UPVC IP 65 water proof
Mounting: Wall mounting with Z-brackets
Size: 150mm X 150mm X 100mm
TRANSMISSION
Interval: User programmable
Interval: 1–60 Minutes
Method: Using Mosquito/broker via MQTT
Protocol: MQTT
ANALOG INPUTS: 4 Nos. (4–20 mA/0–10 V DC | 12 Bit)
Fuel level transmitter
Oil pressure
Battery voltage
Spare
DIGITAL INPUTS: 4 Nos. (Non-Isolated)
Fuel Lid
Water Level
YAWAPA
Spare
CPU
Dual core up to 240 MHz
Flash RAM: 4 MB
SRAM: 520 KB SRAM
EEPROM
DATA LOGGING
Event + 15,000–40,000 records
BACKUP POWER
5–7 Hours with Li-ion battery (Optional)
ENVIRONMENTAL
Operating: -10°C to 55°C
Storage: -40°C to 85°C
Relative humidity: 10–90%
CONNECTIONS
PCB: Removable screw terminal blocks
Terminal block wire size: 0.5–0.7 mm
Field connections: Wiring harness 3 meters
COMMUNICATIONS
4 types of communications available
Modbus RS485 (Master)
Wi-Fi for Web Server
SPI/UART for Energy Meter
GSM/GPRS 2G/3G
PASSWORDS
4 Levels of password restriction
Setup
Configuration
OTA
Data Download
CONFIGURATION
Local: SPIFFS Web browser/Android App
Remote: Web browser using MQTT protocol
POWER SUPPLY
9–35 V DC
DATABASE
Mongo DB
APP
iOS, Android
Manage DB and development
Web server
Analyzer
Data driver delivery
